Industrial applications
For many years, Lutz eccentric screw pumps of the B70V series have established themselves for pumping a wide range of liquids in all industrial sectors. With innovative new products and a holistic application-orientated solution concept, Lutz has once again significantly expanded its range of eccentric screw pumps for pumping viscous liquids in terms of performance, flexibility and reliability.
Explosion protection
Mechanical seal (GLRD)
PTFE stator

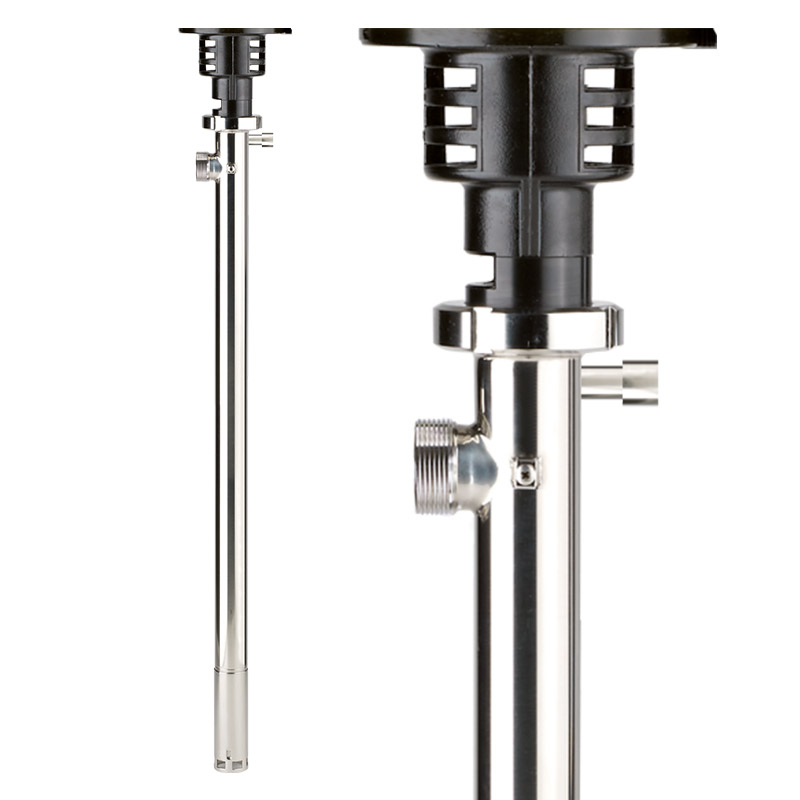

Progressing cavity pump B70V HD-D Industrial
with circulation/flushing connection for three-phase motors
Description:
The progressive cavity pump B70V HD-D in the industrial version is suitable for pumping water-like to highly viscous media with and without fibres or solids. Depending on the application, various motors are available that can be combined with the pumping unit at any time. This gives you flexibility at all times and saves important resources.
Version with circulation/flushing connection with 3/8" internal thread
Examples of media: viscous mineral oils, resins, emulsions, paints and many other thick substances
Properties & advantages
Uniform volume flow
Quick and easy cleaning
gentle, low-pulsation product conveying
Low wear
Ideal for portable use
approved in accordance with ATEX Directive 2014/34/EU, category 1/2
25 l/min.
Gleitringdichtung (GLRD)
Stator NBR light-coloured
Progressing cavity pump unit B70V-SR Industry
with reduction gearbox for electric motors
Description:
The progressive cavity pump B70V-SR 25.1 (with reduction gear) in the industrial version is suitable for pumping water-like to highly viscous media with and without fibres or solids. Depending on the application, various compressed air and electric motors are available, which can be combined with the pumping unit at any time. This gives you flexibility at all times and saves important resources.
PTO shaft versions also available in special immersion depths of 500 - 2000 mm
Pumping unit equipped with Lutz original handwheel
Examples of media: viscous mineral oils, resins, emulsions, paints and many other thick substances
Properties & advantages
Uniform volume flow
Quick and easy cleaning
gentle, low-pulsation product conveying
Low wear
Ideal for portable use
approved in accordance with ATEX Directive 2014/34/EU, category 1/2
75 l/min.
Mechanical seal (GLRD)
Stator NBR light-coloured
Progressing cavity pump unit B70V-D Industry
for three-phase motors
Description:
The progressive cavity pump B70V-D 75.1 in the industrial version is a powerful positive displacement pump for medium, high viscosity and viscous media up to the limits of flowability. Depending on the application, various three-phase AC and air motors are available, which can be combined with the pumping unit at any time. This gives you flexibility at all times and saves important resources.
Drive shaft designs also available in special immersion depths of 500 - 2000 mm
Examples of media: viscous mineral oils, resins, emulsions, paints and many other thick substances.
Properties & advantages
Uniform volume flow
Quick and easy cleaning
Gentle, low-pulsation product conveying
Smooth running and low wear
Large selection of robust and powerful drive motors
25 l/min.
Mechanical seal (GLRD)
PTFE stator
Progressing cavity pump unit B70V-D Industry
for three-phase motors
Description:
The steel version of the B70V 25.1 progressive cavity pump is a powerful positive displacement pump for medium, high-viscosity and viscous media up to the limits of flowability. Depending on the application, various three-phase AC and air motors are available, which can be combined with the pumping unit at any time. This gives you flexibility at all times and saves important resources.
Drive shaft designs also available in special immersion depths of 500 - 2000 mm
Examples of media: viscous mineral oils, resins, emulsions, paints and many other thick substances
Properties & advantages
Uniform volume flow
Quick and easy cleaning
gentle, low-pulsation product conveying
Low wear
Ideal for mobile use
25 l/min.
Stuffing box
Stator NBR light-coloured
Progressing cavity pump unit B70V-SR Industry
with reduction gearbox for electric motors
Description:
The progressive cavity pump B70V-SR 25.1 (with reduction gear) in the industrial version is suitable for pumping water-like to highly viscous media with and without fibres or solids. Depending on the application, various compressed air and electric motors are available, which can be combined with the pumping unit at any time. This gives you flexibility at all times and saves important resources.
PTO shaft versions also available in special immersion depths of 500 - 2000 mm
Pumping unit equipped with Lutz original handwheel
Examples of media: viscous mineral oils, resins, emulsions, paints and many other thick substances
Properties & advantages
Uniform volume flow
Quick and easy cleaning
gentle, low-pulsation product conveying
Low wear
Ideal for mobile use
25 l/min.
Mechanical seal (GLRD)
Stator NBR light-coloured
Progressing cavity pump unit B70V-D Industry
for three-phase motors
Description:
The progressive cavity pump B70V-D 25.1 in the industrial version is a powerful positive displacement pump for medium, high viscosity and viscous media up to the limits of flowability. Depending on the application, various three-phase AC and air motors are available, which can be combined with the pumping unit at any time. This gives you flexibility at all times and saves important resources.
Drive shaft designs also available in special immersion depths of 500 - 2000 mm
Examples of media: viscous mineral oils, resins, emulsions, paints and many other thick substances.
Properties & advantages
Uniform volume flow
Quick and easy cleaning
Gentle, low-pulsation product conveying
Smooth running and low wear
Large selection of robust and powerful drive motors
approved in accordance with ATEX Directive 2014/34/EU, category 1/2
50 l/min
Gleitringdichtung (GLRD)
Stator NBR light-coloured
Progressing cavity pump unit B70V-SR Industry
with reduction gearbox for electric motors
Description:
The progressive cavity pump B70V-SR 50.1 (with reduction gear) in the industrial version is suitable for pumping water-like to highly viscous media with and without fibres or solids. Depending on the application, various compressed air and electric motors are available, which you can combine with the pumping station at any time, giving you flexibility at all times and saving important resources.
PTO shaft versions also available in special immersion depths of 500 - 2000 mm
Pumping unit equipped with Lutz Original handwheel
Examples of media: viscous mineral oils, resins, emulsions, paints and many other thick substances
Properties & advantages
Uniform volume flow
Quick and easy cleaning
gentle, low-pulsation product conveying
Low wear
Ideal for portable use
approved in accordance with ATEX Directive 2014/34/EU, category 1/2
50 l/min.
Mechanical seal (GLRD)
Stator NBR light-coloured
Progressing cavity pump unit B70V-D Industry
for three-phase motors
Description:
The progressive cavity pump B70V-D 50.1 in the industrial version is a powerful positive displacement pump for medium, high viscosity and viscous media up to the limits of flowability. Depending on the application, various three-phase AC and air motors are available, which can be combined with the pumping unit at any time. This gives you flexibility at all times and saves important resources.
Drive shaft designs also available in special immersion depths of 500 - 2000 mm
Examples of media: viscous mineral oils, resins, emulsions, paints and many other thick substances.
Properties & advantages
Uniform volume flow
Quick and easy cleaning
Gentle, low-pulsation product conveying
Smooth running and low wear
Large selection of robust and powerful drive motors
approved in accordance with ATEX Directive 2014/34/EU, category 1/2
Explosion protection
12 l/min.
Mechanical seal (GLRD)
Progressing cavity pump unit B70V-D Industry
for three-phase motors
Description:
The progressive cavity pump B70V-D 12.1 in the industrial version is a powerful positive displacement pump for medium, high viscosity and viscous media up to the limits of flowability. Depending on the application, various three-phase AC and air motors are available, which can be combined with the pumping unit at any time. This gives you flexibility at all times and saves important resources.
Drive shaft designs also available in special immersion depths of 500 - 2000 mm
Examples of media: viscous mineral oils, resins, emulsions, paints and many other thick substances.
Properties & advantages
Uniform volume flow
Quick and easy cleaning
Gentle, low-pulsation product conveying
Smooth running and low wear
Large selection of robust and powerful drive motors
approved in accordance with ATEX Directive 2014/34/EU, category 1/2
50 l/min.
Stopfbuchse
Stator NBR bright
Progressing cavity pump unit B70V-SR Industry
with reduction gearbox for electric motors
Description:
The progressive cavity pump B70V-SR 50.1 (with reduction gear) in the industrial version is suitable for pumping water-like to highly viscous media with and without fibres or solids. Depending on the application, various compressed air and electric motors are available, which can be combined with the pumping unit at any time. This gives you flexibility at all times and saves important resources.
PTO shaft versions also available in special immersion depths of 500 - 2000 mm
Pumping unit equipped with Lutz original handwheel
Examples of media: viscous mineral oils, resins, emulsions, paints and many other thick substances
Properties & advantages
Uniform volume flow
Quick and easy cleaning
gentle, low-pulsation product conveying
Low wear
Ideal for mobile use
12 l/min.
Stuffing box
PTFE stator
Progressing cavity pump unit B70V-D Industry
for three-phase motors
Description:
The progressive cavity pump B70V-D 12.1 in the industrial version is a powerful positive displacement pump for medium, high viscosity and viscous media up to the limits of flowability. Depending on the application, various three-phase AC and air motors are available, which can be combined with the pumping unit at any time. This gives you flexibility at all times and saves important resources.
Drive shaft designs also available in special immersion depths of 500 - 2000 mm
Examples of media: viscous mineral oils, resins, emulsions, paints and many other thick substances
Properties & advantages
Uniform volume flow
Quick and easy cleaning
gentle, low-pulsation product conveying
Low wear
Ideal for mobile use
12 l/min.
Mechanical seal (GLRD)
PTFE stator
Progressing cavity pump unit B70V-SR Industry
with reduction gearbox for electric motors
Description:
The progressive cavity pump B70V-SR 12.1 (with reduction gear) in the industrial version is suitable for pumping water-like to highly viscous media with and without fibres or solids. Depending on the application, various compressed air and electric motors are available, which can be combined with the pumping unit at any time. This gives you flexibility at all times and saves important resources.
PTO shaft versions also available in special immersion depths of 500 - 2000 mm
Pumping unit equipped with Lutz original handwheel
Examples of media: viscous mineral oils, resins, emulsions, paints and many other thick substances
Properties & advantages
Uniform volume flow
Quick and easy cleaning
gentle, low-pulsation product conveying
Low wear
Ideal for portable use
approved in accordance with ATEX Directive 2014/34/EU, category 1/2
120 l/min.
Mechanical seal (GLRD)
Stator NBR light-coloured
Progressing cavity pumping station B70V Industry
for three-phase motors
Description:
The progressive cavity pump B70V 120.1 in the industrial version is a powerful positive displacement pump for highly viscous, pasty and viscous media up to the limits of flowability. Depending on the application, various three-phase AC and air motors are available, which can be combined with the pumping unit at any time. This gives you flexibility at all times and saves important resources.
Available in special immersion depths of 500 - 2500 mm on request
Connection to the discharge nozzle of the pumping unit is made with a Tri-Clamp
Examples of media: high-viscosity mineral oils, resins, emulsions, paints and many other thick substances.
Properties & advantages
Uniform volume flow
Quick and easy cleaning
Gentle, low-pulsation product conveying
Smooth-running and low-wear
Large selection of robust and powerful drive motors
Explosion protection
Mechanical seal (GLRD)
PTFE stator

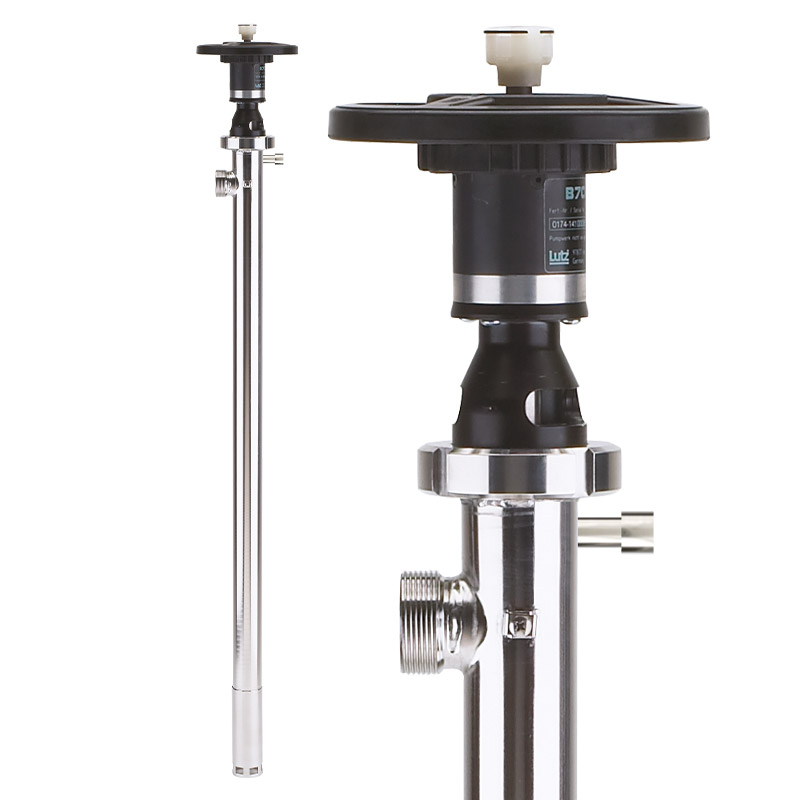

Progressing cavity pump B70V HD-SR Industrial
With circulation/flushing connection for electric motors
Description:
The progressive cavity pump B70V HD-SR in the industrial version is suitable for pumping water-like to highly viscous media with and without fibres or solids. Depending on the application, various motors are available that can be combined with the pumping unit at any time. This gives you flexibility at all times and saves important resources.
Version with circulation/flushing connection with 3/8" internal thread
Pumping unit equipped with Lutz original handwheel
Examples of media: viscous mineral oils, resins, emulsions, paints and many other thick substances
Properties & advantages
Uniform volume flow
Quick and easy cleaning
gentle, low-pulsation product conveying
Low wear
Ideal for portable use
approved in accordance with ATEX Directive 2014/34/EU, category 1/2
12 l/min.
Stuffing box
PTFE stator
Progressing cavity pump unit B70V-SR Industry
with reduction gearbox for electric motors
Description:
The progressive cavity pump B70V-SR 12.1 (with reduction gear) in the industrial version is suitable for pumping water-like to highly viscous media with and without fibres or solids. Depending on the application, various compressed air and electric motors are available, which can be combined with the pumping unit at any time. This gives you flexibility at all times and saves important resources.
PTO shaft versions also available in special immersion depths of 500 - 2000 mm
Pumping unit equipped with Lutz original handwheel
Examples of media: viscous mineral oils, resins, emulsions, paints and many other thick substances
Properties & advantages
Uniform volume flow
Quick and easy cleaning
gentle, low-pulsation product conveying
Low wear
Ideal for mobile use
Industry
Progressing cavity pump unit HD-E-SR Industry
for mineral oils and disposal fluids
Description:
The HD-E-SR eccentric worm-drive pump in the industrial version simply transfers the advantages of the drum pump for viscous media to the high-viscosity range. The positive displacement pump has an easily detachable outer tube, a bearing head with a mechanical seal and a free-running shaft with an eccentric screw as the delivery element - all of which are easy to dismantle and clean. Due to the small outer diameter of the pump tube of max. 41 mm, viscous liquids up to 30,000 mPas can be filled. The pumping unit can be combined with our electric or compressed air motors. This ensures that the liquids are emptied, thus conserving important resources.
Also available in special immersion depths
Pumping unit equipped with Lutz original handwheel
Examples of media: Oils, glucoses, waste oils, disposal liquids,
Features & advantages
Optionally driven by electric or compressed air motors
Uniform volume flow
Light and versatile due to low motor weight
Continuous, low-pulsation delivery of up to 15 litres/min
Low wear and tear
easily detachable outer tube
Industry
Progressive cavity pumping unit HD-E Industry
for oils, colours and disposal fluids
Description:
The HD-E eccentric worm-drive pump in the industrial version simply transfers the advantages of the drum pump for low-viscosity media to the medium-viscosity range. The positive displacement pump has an easily detachable outer tube, a bearing head with mechanical seal and a free-running shaft with an eccentric screw as the delivery element - all easy to dismantle and clean. The pumping unit can be combined with our single-phase motor. This ensures that the liquids are emptied, thus conserving important resources.
Also available in special immersion depths
Pumping unit equipped with Lutz original handwheel
Examples of media: Oils, waste oils, disposal fluids, paints
Properties & advantages
Smooth running
Even volume flow
Quick and easy cleaning
gentle, low-pulsation product conveying
Low wear
easily detachable outer tube
50.1 l/min.
Stuffing box
Stator NBR light-coloured
Progressing cavity pump unit B70V-D Industry
for three-phase motors
Description:
The progressive cavity pump B70V-D 50.1 in the industrial version is a powerful positive displacement pump for medium, high viscosity and viscous media up to the limits of flowability. Depending on the application, various three-phase AC and air motors are available, which can be combined with the pumping unit at any time. This gives you flexibility at all times and saves important resources.
Drive shaft designs also available in special immersion depths of 500 - 2000 mm
Examples of media: viscous mineral oils, resins, emulsions, paints and many other thick substances.
Properties & advantages
Uniform volume flow
Quick and easy cleaning
Gentle, low-pulsation product conveying
Smooth running and low wear
Large selection of robust and powerful drive motors
25 l/min.
Stuffing box
Stator NBR light-coloured
Progressing cavity pump unit B70V-D Industry
for three-phase motors
Description:
The progressive cavity pump B70V-D 25.1 in the industrial version is a powerful positive displacement pump for medium, high viscosity and viscous media up to the limits of flowability. Depending on the application, various three-phase AC and air motors are available, which can be combined with the pumping unit at any time. This gives you flexibility at all times and saves important resources.
Drive shaft designs also available in special immersion depths of 500 - 2000 mm
Examples of media: viscous mineral oils, resins, emulsions, paints and many other thick substances.
Properties & advantages
Uniform volume flow
Quick and easy cleaning
Gentle, low-pulsation product conveying
Smooth running and low wear
Large selection of robust and powerful drive motors
Explosion protection
Horizontal
25 l/min.
Horizontal progressive cavity pumping unit B70H Industry
For neutral, aggressive and highly flammable media
Description:
The B70H is a modification of our B70V and is designed for horizontal use on a transport trolley. It can be used in situations where the B70V reaches its spatial or handling limits and thus rounds off our range of progressing cavity pumps with a mobile version. The pump is suitable for pumping aqueous to highly viscous Newtonian and non-Newtonian media as well as media containing solids and shear-sensitive media. However, it is also used in explosion-protected zones for aggressive and highly flammable liquids with high delivery pressure.
simple upgrade of the stator from 25.1 to 75.1 possible
Horizontal design
optionally with stainless steel transport trolley with normal or conductive castors.
Features & advantages
can be conveyed with low room height
No physical strain due to heavy lifting
Mobility is provided by the transport trolley
Simple resizing possible
Easy handling of pumps with high weight
Approved in accordance with ATEX Directive 2014/34/EU, category 1/2
