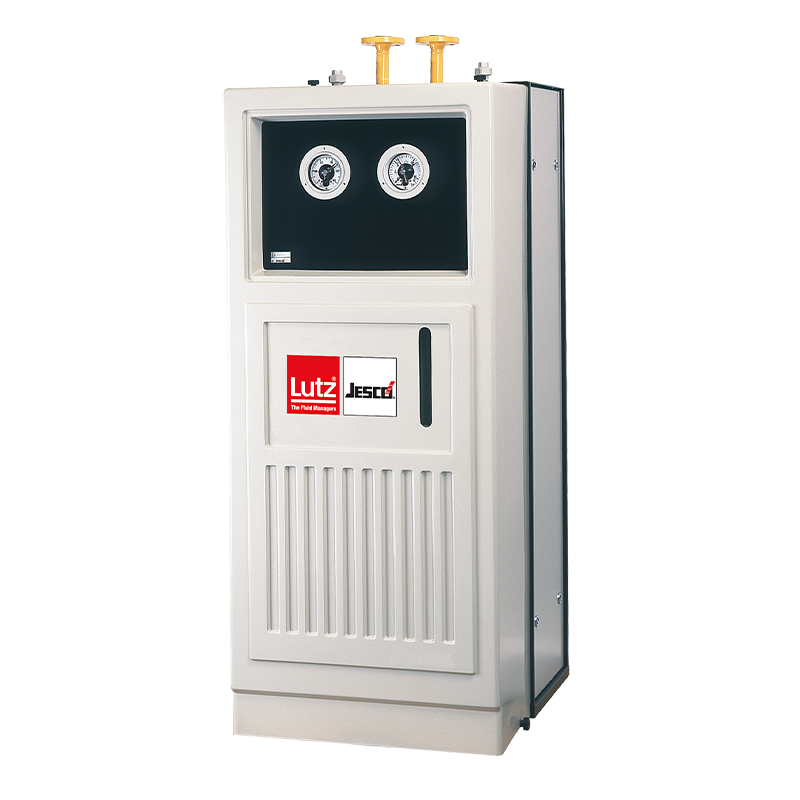

Chlorine Evaporator C 6100
*Illustration may differ from the actual product
Efficient gas production
The evaporator mainly consists of a pipe that is designed as an evaporation coil with a vertical inlet and outlet. The evaporation coil is encased by a steel tank that is filled with water. Immersion heaters below the evaporation coil close to the tank floor guarantee that the water is evenly heated due to free convection. This means that neither a circulation pump nor a mixer is needed for circulating the water. The liquid chlorine enters the evaporator from the top and flows through the evaporation coil towards the tank floor in counterflow to the hot water, which is circulating upwards. On its way downwards, the chlorine absorbs the water's heat and evaporates as a result. This design, whereby both fluids are passing each other in opposing directions, ensures that the heat of the water is used effectively and efficiently for evaporating the liquid chlorine.
Features & Benefits
- Evaporator output of up to 220 kg Cl2/h
- Evaporation coil design with water as a heating medium
- Hot water tank and evaporation coil made of seamless pressure tank steel
- Electrical heating of the water using immersion heaters
- Sensors for monitoring the temperature, pressure and fill level
- Visual indicators for pressure, fill level and temperature
- Cathodic anti-corrosion protection
