Progressing cavity pump unit B70V SanitaryPlus, Ex
Food
Explosion protection
12 l/min.
*Illustration may differ from the actual product
Delivery time 2-3 weeks (approx. 10-15 working days)
Product number:
0172-094
Product information "Progressing cavity pump unit B70V SanitaryPlus, Ex"
Description:
The B70V SanitaryPlus food pump is a powerful positive displacement pump for highly sensitive, viscous media with and without fibres or solids up to the limits of flowability. It pumps liquid foodstuffs, active pharmaceutical ingredients and cosmetic products from a wide variety of containers and delivery packs. The pump fulfils the requirements of hygienic design and is certified in accordance with the "3-A Sanitary Standards".
- Also available in special immersion depths
- Equipped as standard with a support bracket and a quick-release motor lock
- Examples of media: liquid foodstuffs and luxury foods, active pharmaceutical ingredients and cosmetic products
Properties & advantages

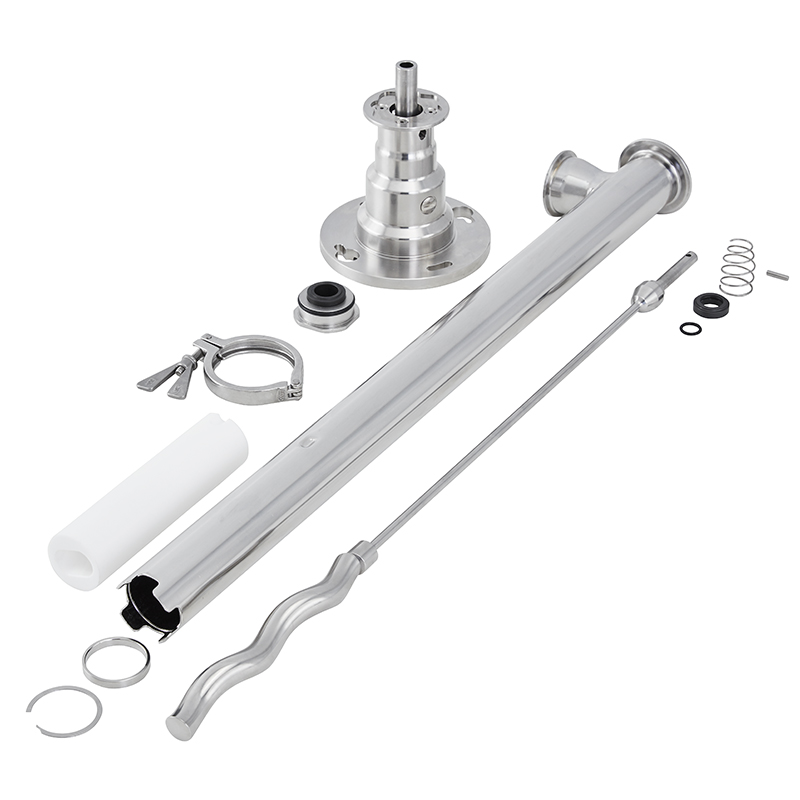

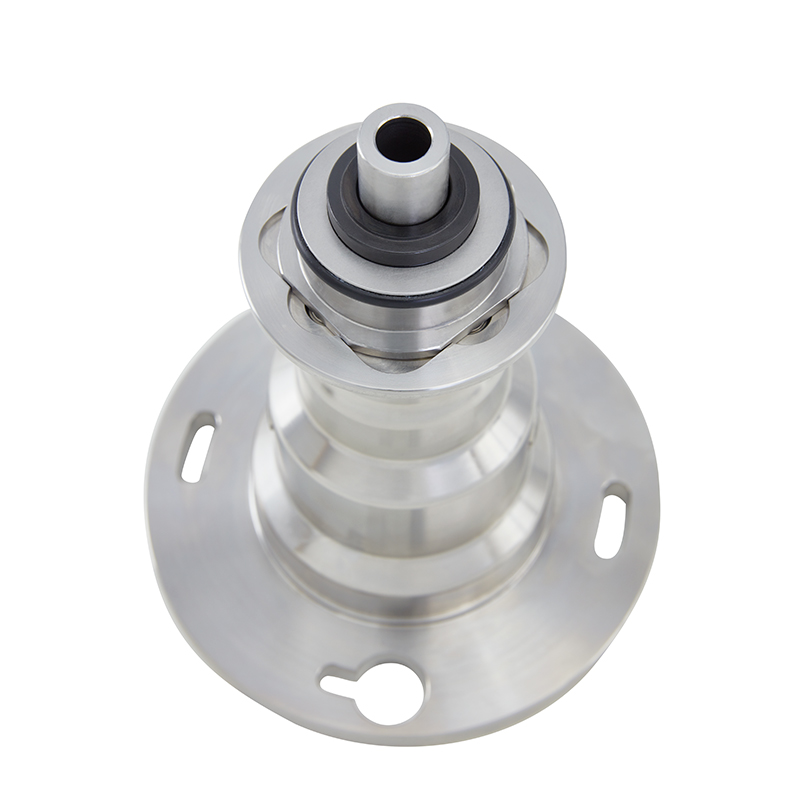

- Threadless, manually detachable quick connectors in the wetted area
- Quick and easy disassembly
- Quick and easy cleaning
- quick-release coupling between motor and pump unit
- Gentle, low-pulsation product delivery
- certified and approved in accordance with the current "3-A Sanitary Standards for Centrifugal and Positive Rotary Pumps Number 02-10"
| Certification: | 3-A Sanitary Standard, ATEX Richtlinie (ATEX Richtlinie 2014/34/EU), U.S. Pharmacopeial Convention, Verordnung (EG) 1935/2004 |
|---|---|
| Connection: | Tri-Clamp |
| Delivery head (up to max. bar)*: | 6 |
| Delivery rate (up to max. l/min)*: | 12 |
| Drive shaft (material): | Stainless steel (1.4571) |
| Drive type: | Three phase |
| Explosion protection: | Yes |
| Immersion depth (mm): | 1100 |
| Immersion tube diameter (max. mm): | 54 |

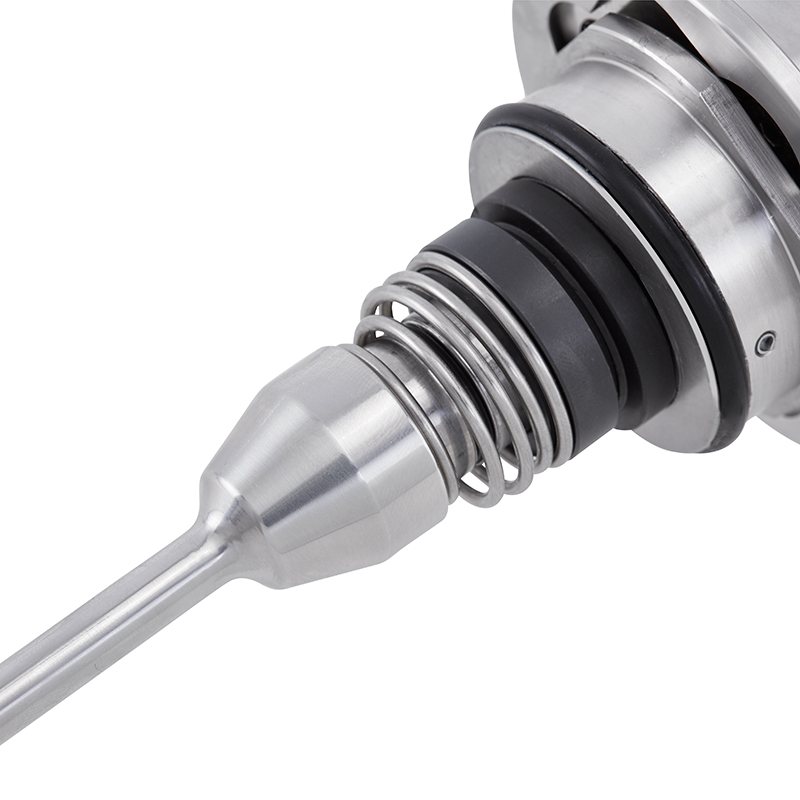

| Mechanical seal (material): | SIC, carbon, EPDM |
| Pressure connection (DN): | 50 |
| Pumped liquid temperature (max °C): | 100 |
| Pumping unit material (material): | Stainless steel (1.4404) |
| Rotor (material): | Stainless steel (1.4571) |
| Seal type: | mechanical seal (MS) |
| Static seal (material): | FPM (fluororubber) |
| Stator (material): | PTFE (polytetrafluoroethylene) |
| Stator size: | 12.1 |
| Suitable media: | Cremes, Dispersionsfarbe, Eiscreme, Fats , Gelee, Gemüsebrei, Glucose , Honig , Lip gloss, Lippenstift, Mascara, Ointments , Tomatenmark , Vaseline, Yoghurt |
| Type: | B70V-H-D SanitaryPlus |
| Viscosity (up to max. mPas)*: | 100000 |
* The maximum flow rate is a value determined by means of a test bench and measured with water at a liquid temperature of approx. 20 °C . The measurement is taken at the pressure joint of the pump, without hose, nozzle or flow meter. The achievable flow rate in use is lower and depends on the individual application, the liquid properties and the configuration of the pump. The max. delivery head also depends on the pump design, motor and fluid. The viscosity values are determined with oil.
** Test assembly: Medium water / diesel, flow in preferred direction, settling section 0.2 m upstream and downstream of flow meter
