Barrel pump - Solvent
Explosion protection

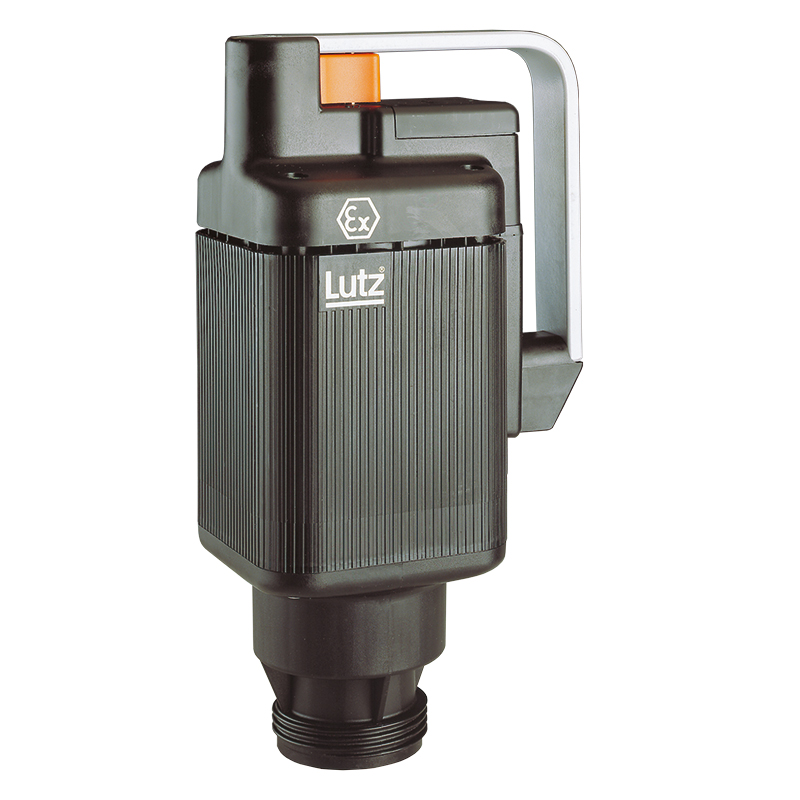

Electric
Barrel pump
*Illustration may differ from the actual product
Available, delivery time: 2-5 days
Product number:
0205-405
Product information "Barrel pump - Solvent"
Description:
The drum pump is suitable for low-viscosity, flammable and highly flammable hydrocarbons. Perfectly suited for the removal or decanting of solvents.
- Optionally available with Ex plug

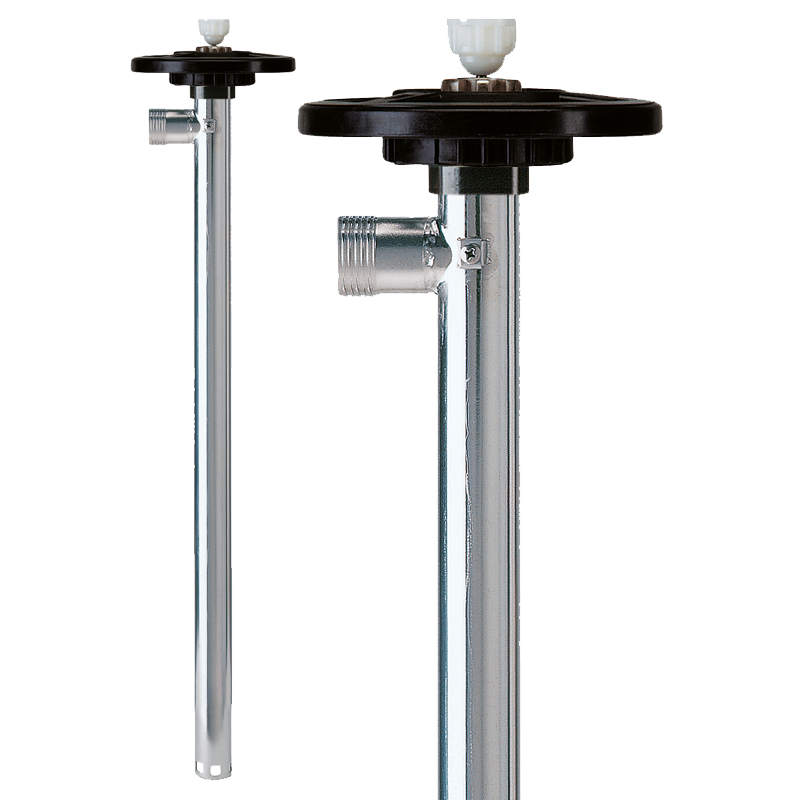

- Pumping unit equipped with Lutz original handwheel
- Suitable for filling or transferring alternative fuels, oils and flammable liquids
Features & advantages
- Optionally with electric or compressed air drive
- No lubricants and therefore no contamination of the pumped liquid by lubricants
- Highly resistant high-grade carbon shaft bearing
- Maintenance without special tools
- Sealing modules of the sealless (DL) pump can be replaced
- Approved in accordance with ATEX Directive 2014/34/EU, category 1/2
| Bearing (material): | Edelkohle |
|---|---|
| Conveyor wheel (material): | ETFE (ethylene-tetrafluorethylene copolymer) |
| Conveyor wheel shape / drive type: | Radial-flow impeller |
| Delivery head (up to max. mWS)*: | 14 |
| Delivery rate (up to max. l/min)*: | 95 |
| Density (up to kg/dm³): | 1.6 |
| Design/equipment: | with undervoltage release |
| Drive shaft (material): | Stainless steel (1.4571) |
| Drive type: | Electric |
| Explosion protection: | Yes |
| Frequency (Hz): | 50 |
| Immersion depth (mm): | from 1000 mm |
| Immersion tube diameter (max. mm): | 41 |
| Mechanical seal (material): | no seals in contact with the medium |
| Operating pressure (max. bar): | lower than 6 bar |
| Power (W): | 460 |
| Protection class: | IP54 |
| Pumped liquid temperature (max °C): | 100 |
| Pumping unit material (material): | Niro (Edelstahl) |
| Seal type: | Sealless (SL) |
| Static seal (material): | no seals in contact with the medium |
| Suitable media: | Acetone, Butanol, Butyl acetate, Essigsäure, Ethanol, Ethyl acetate, Formic acid, Isopropanol, Methanol, Nikotin, Paraffin, Petrol, Petroleum, Styrene, Toluene |
| Thread (inch) external: | 1 1/4" |
| Viscosity (up to max. mPas)*: | 350 |
| Voltage (V): | 230 |
* The maximum flow rate is a value determined by means of a test bench and measured with water at a liquid temperature of approx. 20 °C . The measurement is taken at the pressure joint of the pump, without hose, nozzle or flow meter. The achievable flow rate in use is lower and depends on the individual application, the liquid properties and the configuration of the pump. The max. delivery head also depends on the pump design, motor and fluid. The viscosity values are determined with oil.
** Test assembly: Medium water / diesel, flow in preferred direction, settling section 0.2 m upstream and downstream of flow meter
Accessory Items
Explosion protection
Electric
Barrel pump
Flow meter TS type VA10 Ex
for highly flammable hydrocarbons
Description:
The first flow meter with touchscreen display and backlighting impresses with its simple, needs-based display and operability, multilingual interface and compact design. Thanks to the rotating swash plate and a magnet, it enables precise measurement of the volume flow and measures solvents, acids, alkalis, highly flammable liquids, oils and neutral media precisely, quickly and, above all, efficiently. Optionally, the desired quantity can be preselected with the quantity preselection (relay module) so that the pump or system switches off automatically after the selected quantity. This further simplifies and secures the operation of the systems.
Optionally with volume preselection (relay module)
Media examples: Methanol, petrol, isopropanol, paraffin, formic acid, acetic acid, acetone, styrene, xylene, toluene, etc.
Mobile on a drum pump or with nozzle connection or stationary in plant construction
Features & advantages
Measurement according to the wobble disc principle
High measuring accuracy
Variable display orientation
Touchscreen display with self-explanatory, multilingual user interface
Measuring range from 10 l/min- 100 l/min
approved according to ATEX directive 2014/34/EU, category 2
Explosion protection
Electric
Barrel pump
Dispensing nozzle Niro
for highly flammable hydrocarbons
Description:
For filling and transferring liquids in the food and pharmaceutical industries as well as flammable and highly flammable liquids. The body and valve plug of the dispensing nozzle are made of stainless steel (1.4571) and are equipped with a protective bracket and a swivel coupling.
EPDM seal available on request at an extra charge
Connection: external thread G 1 1/4"
Features & advantages
For pumping in potentially explosive environments
Simple adjustment of the volume flow
Easy to operate
Safe filling or transferring of the respective liquid
Rotary coupling ensures tightness at high pressure
Explosion protection
Electric
Barrel pump

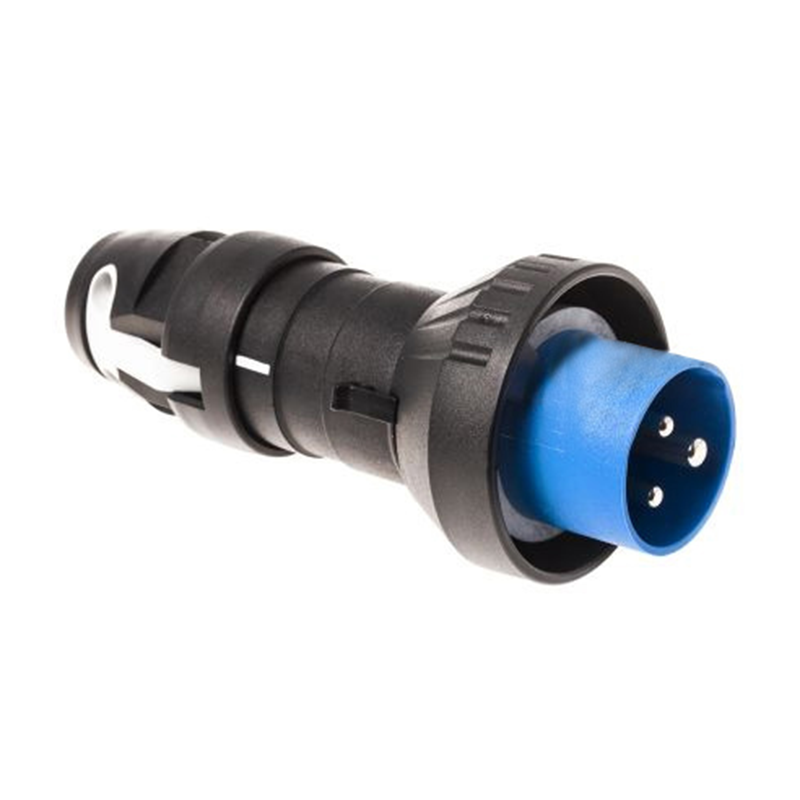

Ex-plug
for highly flammable hydrocarbons
Description:
The CEE round plugs are suitable for three-phase motors (three-phase current) and electric motors (alternating current) and are used in potentially explosive areas or environments.
Splash-proof
Features & benefits
Certification: EEx de IIC T6
Protection class: IP 65
Rotary (3-pole) or alternating current (5-pole)
Explosion protection
Electric
Barrel pump
Potential equalisation cable
for highly flammable hydrocarbons
Description:
The potential equalisation cable is used for the electrically conductive connection between the explosion-protected pump and the container and has the function of earthing and potential equalisation.
2 m with fastening clip
Features & advantages
Earthing and potential equalisation function
Explosion protection
Electric
Barrel pump
IBC traverse
for highly flammable hydrocarbons
Description:
The IBC lifting beam is used to safely remove and install the pumping units or the double diaphragm pump.
Suitable for drum pumps, B70 progressive cavity pumps and diaphragm pumps
Includes transport straps for lifting vehicles and tensioning hooks for fixing to the container
Features & advantages
Compatible with all standard IBC containers
Material: stainless steel
Clamping hook: galvanised steel
for drum pumps / B70 version, guide sleeve with Ø 55 mm made of plastic
Explosion protection
Electric
Barrel pump
Hose set for potentially explosive media
for highly flammable hydrocarbons
Description:
The hose set is suitable for pure chemicals and potentially explosive liquids. The hose is electrically conductive so that it can also be used in potentially explosive environments. The set is used for connection to the pumping station or the dispensing nozzle.
Also available in special lengths on request
Electrically conductive
Features & advantages
Hose connection: 1 1/4" female thread
Nominal diameter: DN 19 (3/4")
Pre-assembled hose connections
Complies with EU regulations 10/2011 and 1935/2004
Explosion protection
Electric
Barrel pump
Flow meter TS type UN10 Ex
for highly flammable hydrocarbons
Description:
The first flow meter with touchscreen display and backlighting impresses with its simple, needs-based display and operability, multilingual interface and compact design. Thanks to the rotating swash plate and a magnet, it enables precise measurement of the volume flow and measures solvents, acids, alkalis, highly flammable liquids, oils and neutral media precisely, quickly and, above all, efficiently. Optionally, the desired quantity can be preselected with the quantity preselection (relay module) so that the pump or system switches off automatically after the selected quantity. This further simplifies and secures the operation of the systems.
Optionally with volume preselection (relay module)
Media examples: Methanol, petrol, isopropanol, paraffin, formic acid, acetic acid, acetone, styrene, xylene, toluene, etc.
Mobile on a drum pump or with nozzle connection or stationary in plant construction
Features & advantages
Measurement according to the wobble disc principle
High measuring accuracy
Variable display orientation
Touchscreen display with self-explanatory, multilingual user interface
Measuring range from 10 l/min- 100 l/min
approved according to ATEX directive 2014/34/EU, category 2
Explosion protection
Electric
Barrel pump

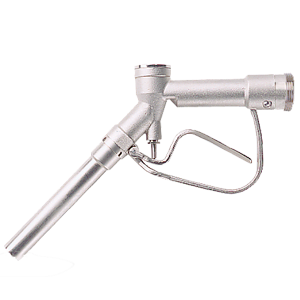

Brass petrol nozzle
for highly flammable hydrocarbons
Description:
For dispensing and transferring solvents and neutral liquids. The housing and the valve plug of the dispensing nozzle are made of brass and are equipped with a swivel coupling and a protective bracket.The dispensing nozzle is sealed with a PTFE seal.
Connection: external thread G 1 1/4"
Features & advantages
Safe filling or decanting of the respective liquid
Easy to operate
Swivel coupling ensures tightness at high pressure
For pumping in potentially explosive environments
Explosion protection
Electric
Barrel pump
Barrel adapter
for highly flammable hydrocarbons
Description:
The drum adapter is for fastening the pump or pump unit in the drum opening. It prevents the pump from tipping over when the drum is empty.
Materials: PP / ST37 / steel, galvanised / PE
Features & advantages
Stabilisation of the pumping unit
External thread 2", 56 x 4 and 70 x6
Explosion protection
Electric
Barrel pump

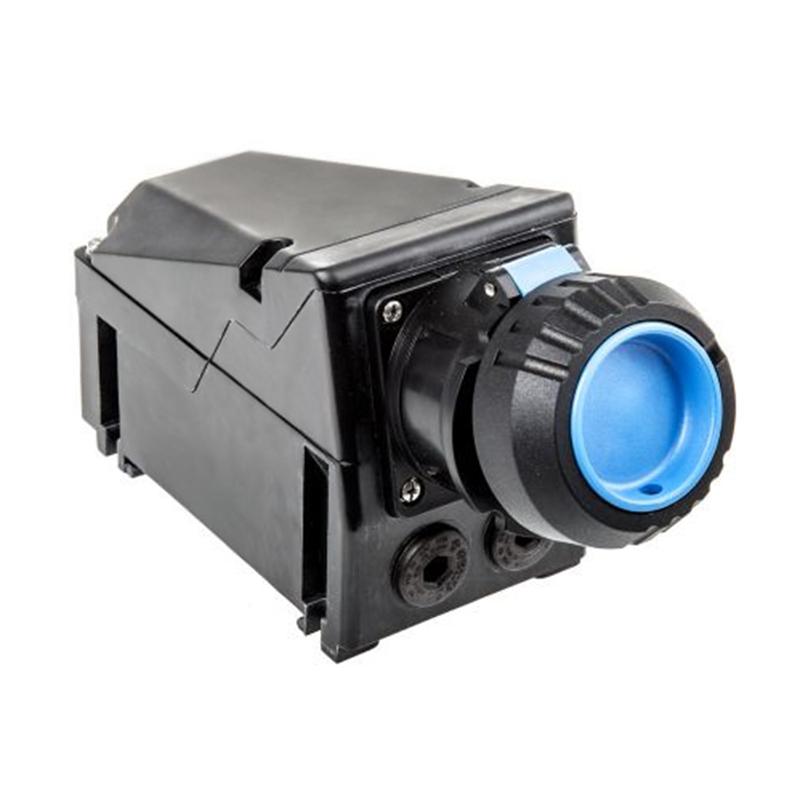

Ex socket outlet
for highly flammable hydrocarbons
Description:
The CEE socket outlets are suitable for three-phase motors (three-phase current) and electric motors (alternating current) and are used in potentially explosive areas or environments.
Splash-proof
Features & benefits
Certification: EEx de IIC T6
Protection class: IP 65
Rotary (3-pole) or alternating current (5-pole)
Explosion protection
Electric
Barrel pump
Container lid
for highly flammable hydrocarbons
Description:
The container lid is used to hold a drum adapter and is suitable for the IBC container
Nominal width of 150 and 225
Properties & advantages
Material: PE
Thread: 2" IG
Explosion protection
Electric
Barrel pump

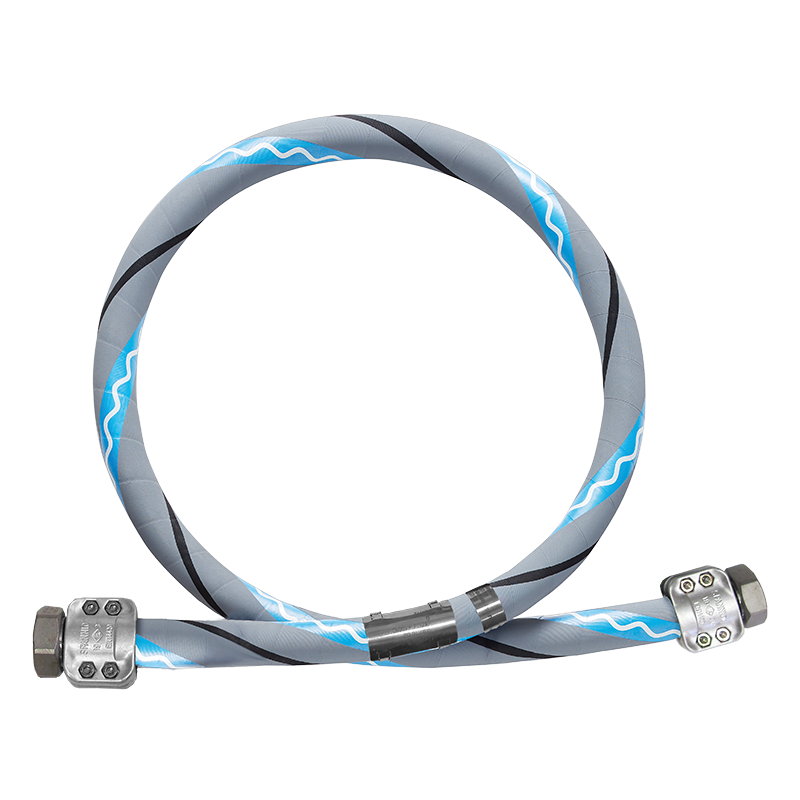

Solvent hose set (NBR)
for highly flammable hydrocarbons
Description:
The hose set is suitable for a wide range of commercially available solvents. The hose is electrically conductive so that it can also be used in potentially explosive environments. The set is used to connect to the pumping station or dispensing nozzle.
Also available in special lengths on request
Electrically conductive
Features & advantages
Hose connection: 1 1/4" female thread
Nominal diameter: DN 19 (3/4")
Pre-assembled hose connections
Complies with EU regulations 10/2011 and 1935/2004
Explosion protection
Electric
Barrel pump
Flow meter TS type LM10 Ex
for highly flammable hydrocarbons
Description:
The first flow meter with touchscreen display and backlighting impresses with its simple, needs-based display and operability, multilingual interface and compact design. Thanks to the rotating swash plate and a magnet, it enables precise measurement of the volume flow and measures solvents and highly flammable liquids, oils and neutral media precisely, quickly and, above all, efficiently. Optionally, the desired volume can be preselected with the volume preselection (relay module) so that the pump or system switches off automatically after the selected volume. This further simplifies and secures the operation of the systems.
Optionally with volume preselection (relay module)
Media examples: Methanol, petrol, isopropanol, paraffin, formic acid, acetic acid, acetone, styrene, xylene, toluene, etc.
Mobile on a drum pump or with nozzle connection or stationary in plant construction
Features & advantages
Measurement according to the wobble disc principle
High measuring accuracy
Variable display orientation
Touchscreen display with self-explanatory, multilingual user interface
Measuring range from 10 l/min- 100 l/min
approved according to ATEX directive 2014/34/EU, category 2
Accessory Items
Explosion protection
Electric
Barrel pump
Drum pump for residual emptying - Solvent
for highly flammable hydrocarbons
Description:
The drum pump is suitable for low-viscosity, flammable and combustible liquids and hydrocarbons. Perfectly suited for the removal or decanting of explosive media and solvents.
Optionally available with Ex plug
Pumping unit equipped with Lutz original handwheel
Suitable for emptying drums of alternative fuels, oils and flammable liquids
Features & advantages
Optionally with electric or compressed air drive
No lubricants and therefore no contamination of the pumped liquid by lubricants
optimised drum emptying with a residual quantity of approx. 0.1 litre
No leaks if the pumping station is tilted or moved
Maximum product utilisation with reduced drum cleaning and disposal costs
Approved in accordance with ATEX Directive 2014/34/EU, category 1/2
