SAFETYCHLORMIX

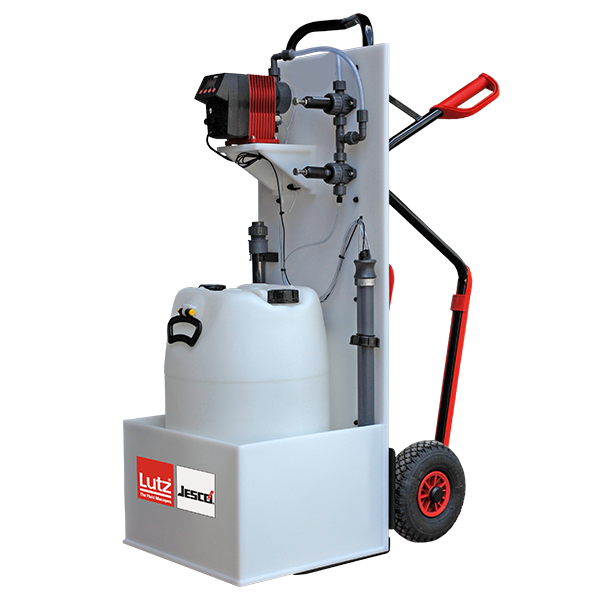

*Illustration may differ from the actual product
Product number:
65000137
Product information "SAFETYCHLORMIX"
| Adapter filling device version:: | Deckel K für 60 l Liefergebinde |
|---|---|
| Adjustable dosing range:: | 0 - 100 % |
| Chlorine output at max. back pressure:: | 95 g/h |
| Delivery rate:: | 1.9 l/h at 16 bar - 2.3 l/h at 8 bar |
| Dosing pump:: | MAGDOS LDp 2 |
| Drip tray:: | PE, dimensions: 480x460x1200 [LxWxH] on tubular steel trolley |
| Filling device:: | with ball valve, 1/2" water connection and activated charcoal filter |
| Hose:: | 6/12 PVC fabric-reinforced, length 10 m |
| MATCHCODE: | 0650A3B0020D331A020C1B11BB1 |
| Product:: | Calcium hypochlorite dosing system |
| Signs:: | 1 Satz Warn- und Verbotsschilder |
| Suction line:: | Suction pipe GF-2 DN4 4/6 PVC/EPDM L=630 |
| Type:: | SAFETYCHLORMIX |
| Vaccination centre:: | Type SKD DN4 PVC/EPDM self-cleaning with injection hose |
| Valve:: | Valve block [1 pressure maintenance valve and 1 pressure relief valve] |
| chlorine concentration:: | 50 g/l |
